Laboratory Sheme:

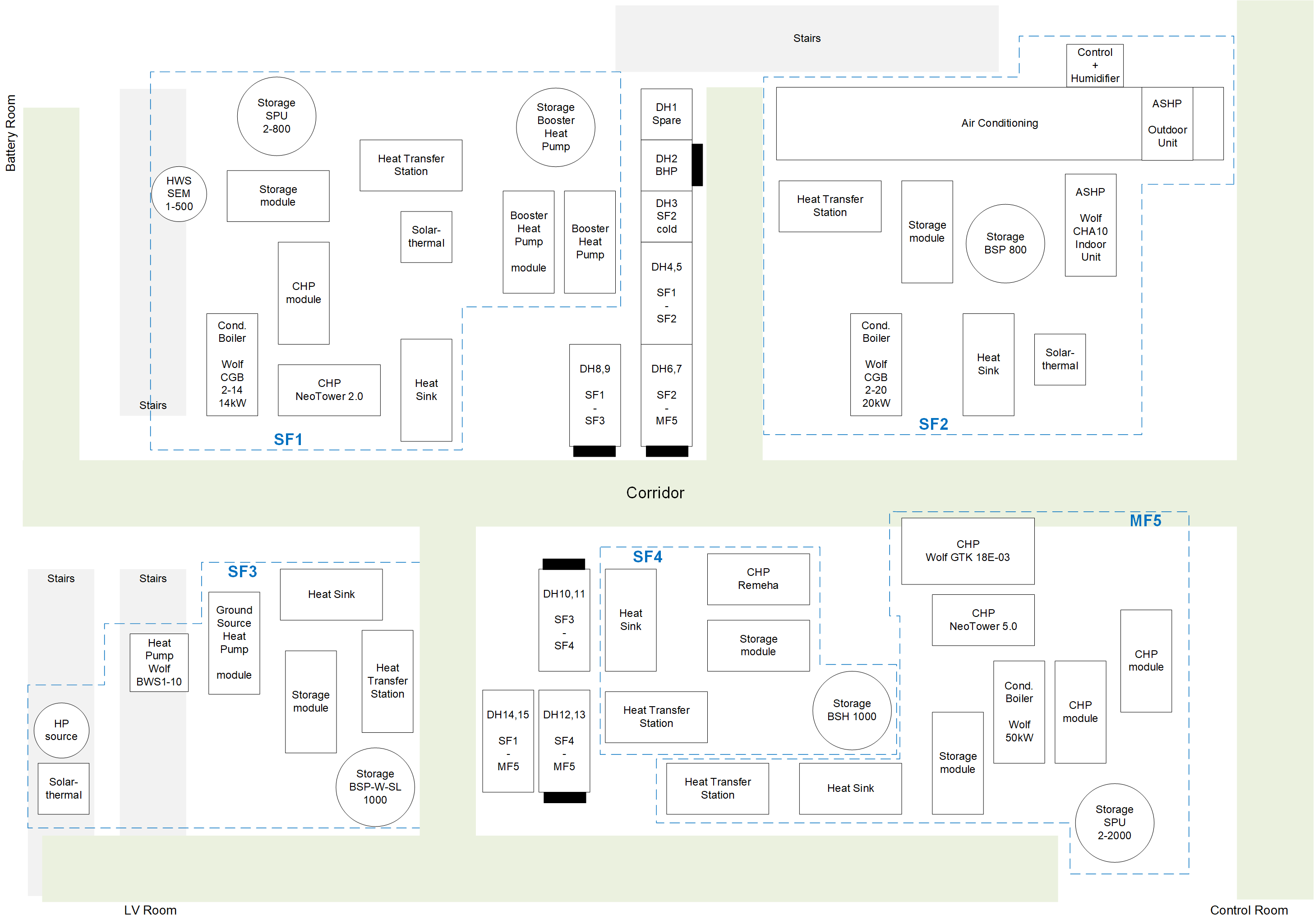

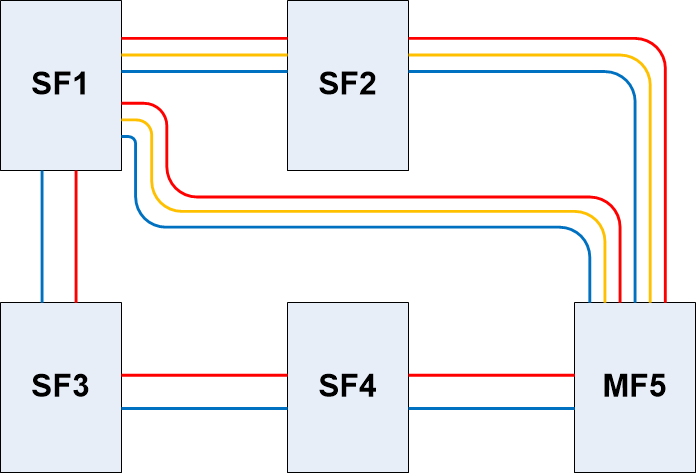

The line color shows the temperature profile:

red: high temperature, e.g. supply line in a district heating grid
yellow: medium temperature, e.g. low temperature supply line in a district heating grid with multiple temperature levels
blue: cold temperature, e.g. return line in a district heating grid

Setup:

	SF1	SF2	SF3	SF4	MF5
Combined Heat and Power	NeoTower 2.0 2 kW_el, 5,2 kW_th			Remeha 25 1 kW_el, 6 kW_th	NeoTower 5.0 5 kW_el, 11,9 kW_th Wolf GTK 18E 18 kW_el, 34 kW_th
CB - Hardware	Wolf CGB14 14 kW_th	Wolf CGB20 20 kW_th		integrated in the CHP, 20 kW_th	Wolf CGB50 50 kW_th
Heat Pump		Wolf CHA 10 (ASHP) 10 kW_th	Wolf BWS-1 10 (GSHP) 10 kW_th
Electric Heater	Option for EH in Hot Water Storage; not installed		6 kW_th (in Heat Pump integrated)	6 kW_th (in Thermal Storage integrated)
Solar Thermal	10 kW_th	10 kW_th	10 kW_th
Hot Water storage	Wolf SPU 2 - 850l	Wolf BSP - 800l	Wolf BSP W-SL - 1000l	Wolf BSH - 1000l	Wolf SUP2 - 2000l
Domestic Hot Water	Wolf SEM 1 - 500l	Fresh Water Station	Fresh Water Station	Combistorage	Fresh Water Station
Heat Sink - Hardware	30 kW_th	30 kW_th	30 kW_th	30 kW_th	60 kW_th
Distribution Unit / Connection Heat Network	30 kW_th BHP - Hardware 5,9-19,8 kW_th; 1,5-5,2 kW_el	30 kW_th	30 kW_th	30 kW_th	60 kW_th
District Heating Grid	3 Connections to SF2 2 Connections to SF3 3 Connections to MF5	3 Connections to SF1 3 Connections to MF5	2 Connections to SF1 2 Connections to SF4	2 Connections to SF3 2 Connections to MF5	3 Connections to SF1 3 Connections to SF2 2 Connections to SF4
