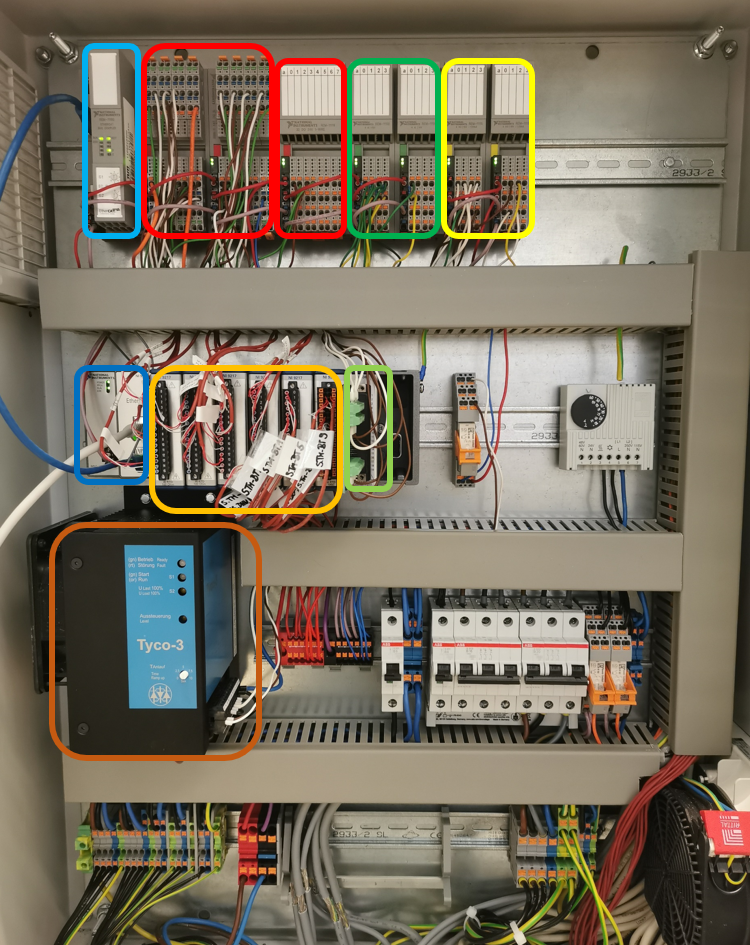

Switch Box:



Switch Box:

NameComponent TypFunction
REM-11180Ethercat Bus CopplerCommunication to the NI 9145
NI 9145CompactRIO ChassisCommunication to the IC 3171
REM-11175Digital Output Module for Remote I/ODigital Output - Operation of the electrical Valves, Command Signal Heat Pump (heating or cooling) and Pumps
REM-11178Digital Output Module for Remote I/ODigital Output - Operation of the electrical Valves, Command Signal Heat Pump (heating or cooling) and Pumps
REM-11100Voltage Input Module for Remote I/OAnalog Input (0-10V) - Flow Rate Messurement, Pressure Measurements, ...
REM-11115Analog Output Module for Remote I/OAnalog Output (0-10V) - Operation of the Pumps, Heat Pump, Heat Exchanger and Electric Heater, Position of the 3-Way Valve, ...
NI 92174 RTD analog input module für CompactRIO systemsTemperature Messurement with PT100
NI 9136Counter input module with 8 channels for CompactRIOCounter Signals - Flow Rate Messurement, Gas flow measurements, ...
Tyco-3Thyristor-ControllerOperation of the Electric Heater

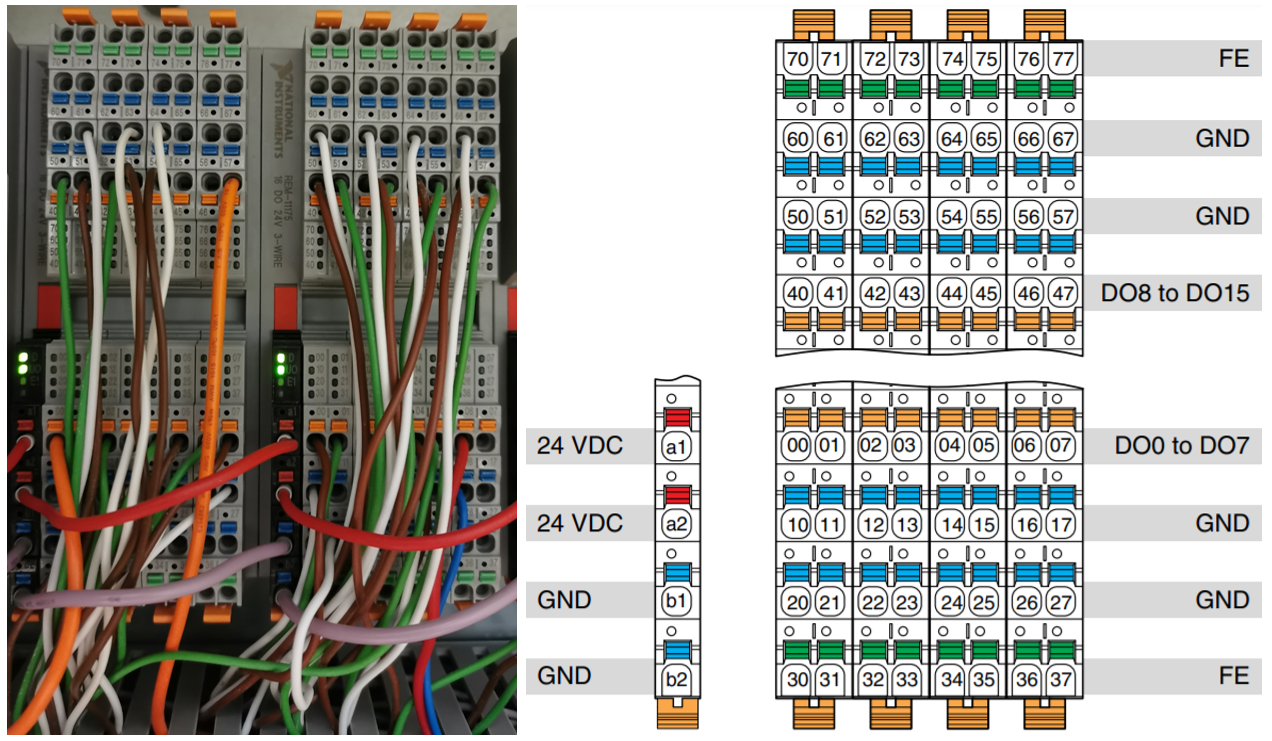

NI REM-11175:


NI REM-11175 Unit 1: Ball valve direction ("1" = close, "2" = open)

Nr.IDSignalPositionCommentsNr.IDSignalPositionComments
9A.PU-WS.CW24VPin 00
15A.DR-DS.CW224VPin 40open
4A.DR-WS.HW124VPin 01close
A_PU-GRID24VPin 41enable Grundfos grid pump
4A.DR-WS.HW224VPin 02open

24VPin 42
8A.DR-WS.CW124VPin 03closeBHPA.HS-HP.ON24VPin 43

to X4.1 (Cable 0)

Heat Pump on

8A.DR-WS.CW224VPin 04openBHPA.CS-HP.ON24VPin 44

to X4.7 (Cable 1)

Heat pump in cooling (true) or heating (false)

13A.DR-DS.HW124VPin 05close


Pin 45


13A.DR-DS.HW224VPin 06openBHPA.HS-HP.CM24VPin 46

to X4...   Control variable is

temperature (false) or power (true)

15A.DR-DS.CW124VPin 07close57A.PU-BS.DHW.VL24VPin 47

NI REM-11175 Unit 2:

Nr.IDSignalPositionCommentsNr.IDSignalPositionComments
29A.DR-PS.VL.HC.124VPin 00close7A.DR-PS.VL.TH.124VPin 40close
29A.DR-PS.VL.HC.224VPin 01open7A.DR-PS.VL.TH.224VPin 41open

43

A.DR-BS.DHW.VL.124VPin 02close9A.DR-PS.VL.TM.124VPin 42close
43A.DR-BS.DHW.VL.224VPin 03open9A.DR-PS.VL.TM.224VPin 43open
45A.DR-HC.VL.aBT.124VPin 04close12A.DR-PS.RL.TM.124VPin 44close
45A.DR-HC.VL.aBT.224VPin 05open12A.DR-PS.RL.TM.224VPin 45open

A.HS-HP.Tyco3.ON24VPin 06Tyco3 on16A.DR-PS.RL.TL.124VPin 46close





16A.DR-PS.RL.TL.224VPin 47open

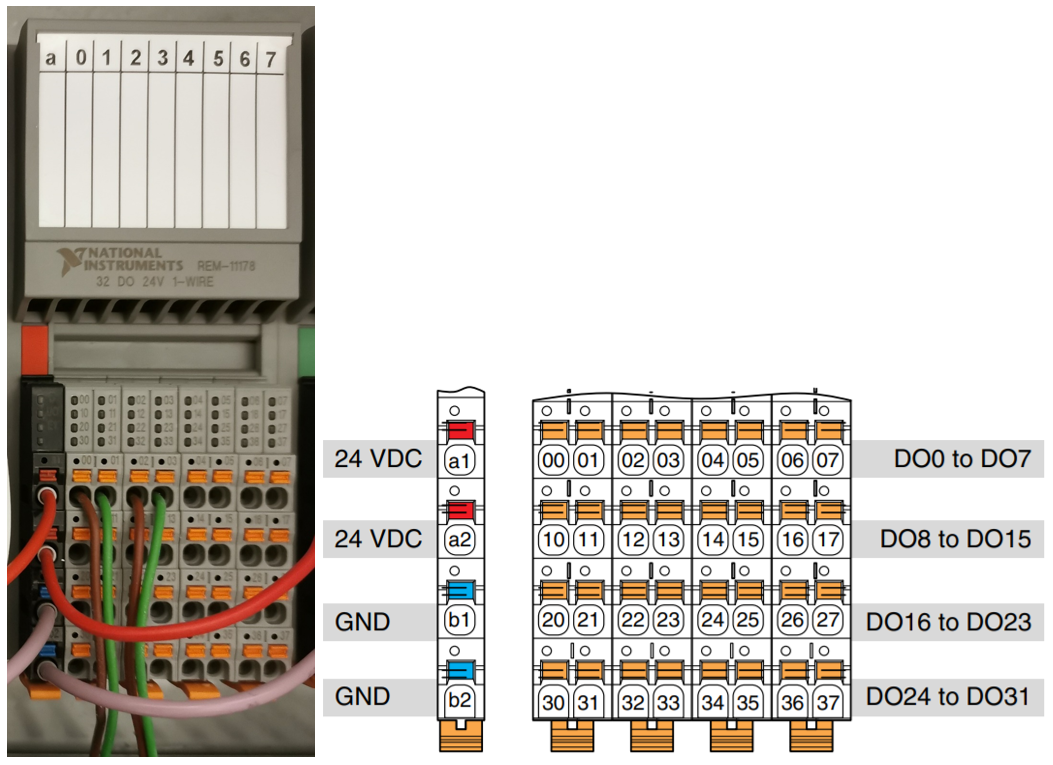

NI REM-11178:




NI REM-11178:

Nr.IDSignalPositionComments
54A.DR-BS.CC.VL.124VPin 00close
54A.DR-BS.CC.VL.224VPin 01open

56

A.DR-BS.HC.VL.124VPin 02close
56A.DR-BS.HC.VL.224VPin 03open

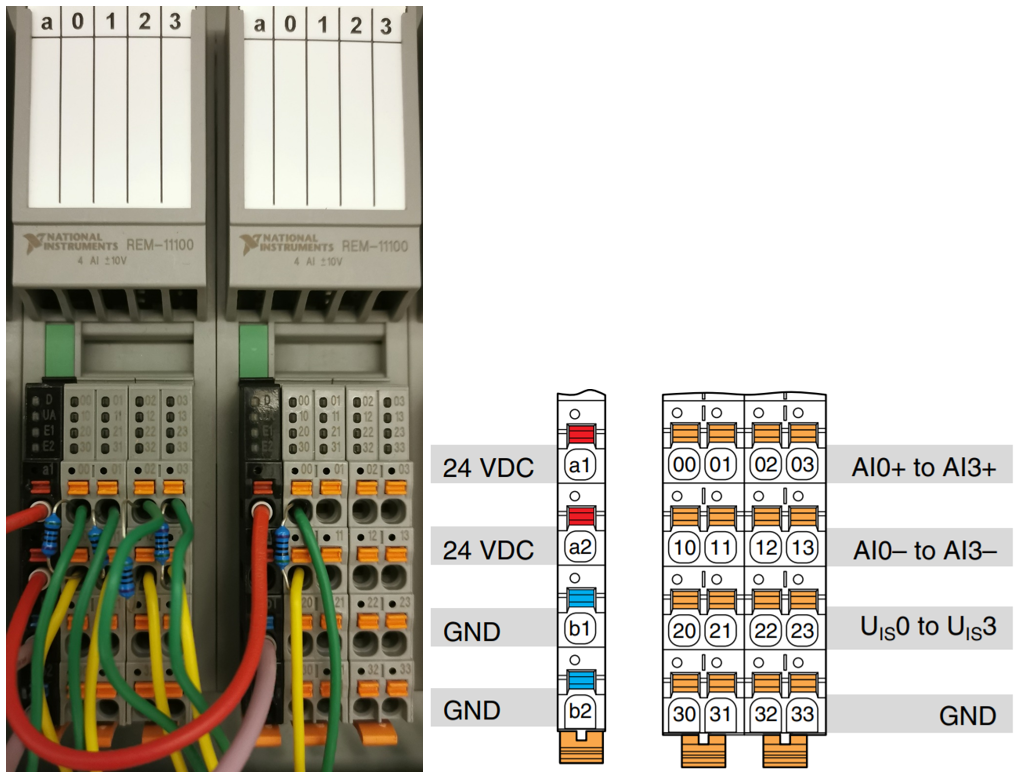

NI REM-11100:





NI REM-11100:

Unit 1:Unit 2:
Nr.IDSignalPositionCommentsNr.IDSignalPositionComments
18S.FW-DS.CW0-10 VPin 00
50S.FW-BS.DHW.RL0-10 VPin 00
33S.FW-PS.RL.bHP0-10 VPin 01

S.AI-HP_ERROR0-10 VPin 010V: okay / 9,5V: error

34

S.FW-PS.RL.bWT0-10 VPin 02



Pin 02
5S.FW-PS.VL0-10 VPin 03



Pin 03

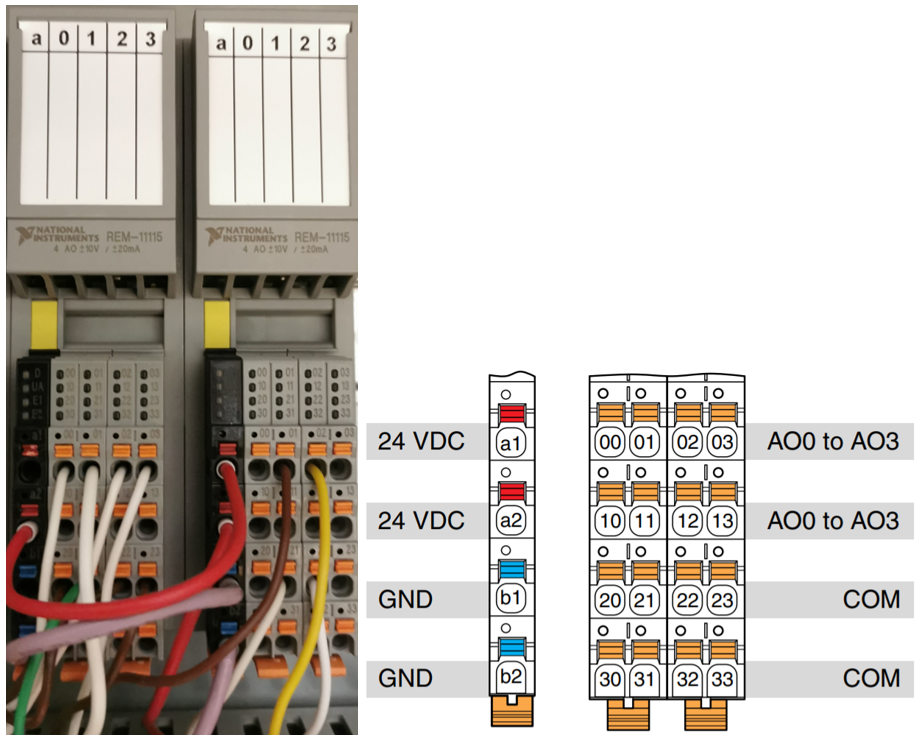

NI REM-11115:



NI REM-11115:

Unit 1:Unit 2:
Nr.IDSignalPositionCommentsNr.IDSignalPositionComments
9A.PU-WS.CW0-10 VPin 00
29A.DR-BS.OF0-10 VPin 00RL mixing valve
24A.HS-HP.EH0-10 VPin 01to thyristor57A.PU-BS.DHW.VL0-10 VPin 01

BHP

A.HS-HP.ML0-10 VPin 02

to X4.2 (Cable 2)

Set temperature / compressor RPM for BHP

52A.DR-V3.BS.HC.RL0-10 VPin 02
BHPA.HS-DT.ML0-10 VPin 03

to X4.5 (Cable 3)

Set temperature for Heat Exchanger




Pin 03




NI 9217:


NI 9217:

Unit 1:Unit 2:
Nr.IDSignalPositionCommentsNr.IDSignalPositionComments
6S.TM-WS.HW0-10 VPin 0-3PT10022S.TM-HP.PS.aHX0-10 VPin 0-3PT100
19S.TM-DS.CW0-10 VPin 4-7PT10023S.TM-HP.PS.aHP0-10 VPin 4-7PT100

20

S.TM-HP.TL.aHX0-10 VPin 8-11PT10025S.TM-PS.VL0-10 VPin 8-11PT100
21S.TM-HP.TM.aHX0-10 VPin 12-15PT10032S.TM-PS.RL0-10 VPin 12-15PT100

NI 9217:

Unit 3:Unit 4:
Nr.IDSignalPositionCommentsNr.IDSignalPositionComments
13S.TM-PS.RL.TM0-10 VPin 0-3PT10048S.TM-BS.HC.RL0-10 VPin 0-3PT100
17S.TM-PS.RL.TL0-10 VPin 4-7PT10049S.TM-BS.DHW.RL0-10 VPin 4-7PT100
46S.TM-BS.DHW.VL0-10 VPin 8-11PT100

66

S.TM-BS.CC.RL0-10 VPin 8-11PT100
47S.TM-BS.HC.VL0-10 VPin 12-15PT10059S.TM-CS.DHW.VL0-10 VPin 12-15PT100

NI 9217:

Unit 5:
Nr.IDSignalPositionComments
30S.TM-BT.10-10 VPin 0-3PT100
31S.TM-BT.20-10 VPin 4-7PT100
32S.TM-BT.30-10 VPin 8-11PT100
33S.TM-BT.40-10 VPin 12-15PT100

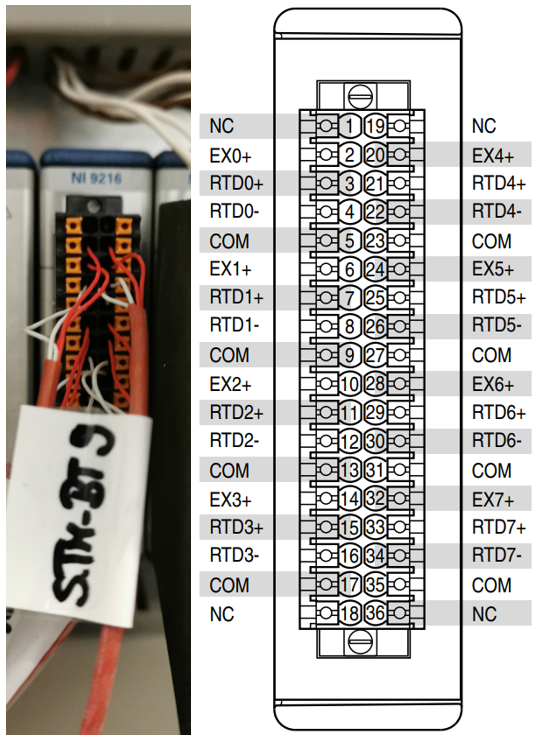

NI 9216:




NI 9216:

Nr.IDSignalPositionCommentsNr.IDSignalPositionComments
34S.TM-BT.50-10 VPin 2-5PT10038S.TM-BT.90-10 VPin 20-23
35S.TM-BT.60-10 VPin 6-9PT10039S.TM-BT.100-10 VPin 24-27
36S.TM-BT.70-10 VPin 10-13PT100tbdS.TM-HP.TM.bHP0-10 VPin 28-31PT100 Evaporator inlet
37S.TM-BT.80-10 VPin 14-17PT100

0-10 VPin 32-35PT100

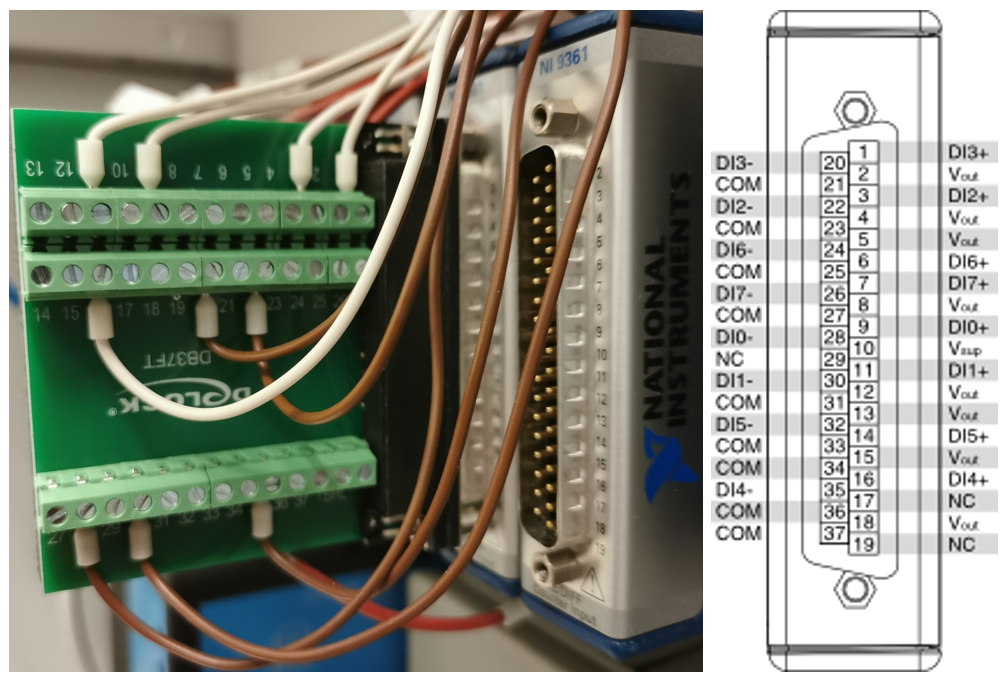

NI 9361:




NI 9361:

Nr.IDSignalPositionComments
18S.FW-DS.CWCounterPin 09 + Pin 28
33S.FW-PS.RL.bHPCounterPin 11 + Pin 30

34

S.FW-PS.RL.bWTCounterPin 03 + Pin 22
5S.FW-PS.VLCounterPin 01 + Pin 20
50S.FW-BS.DHW.RLCounterPin 16 + Pin 35

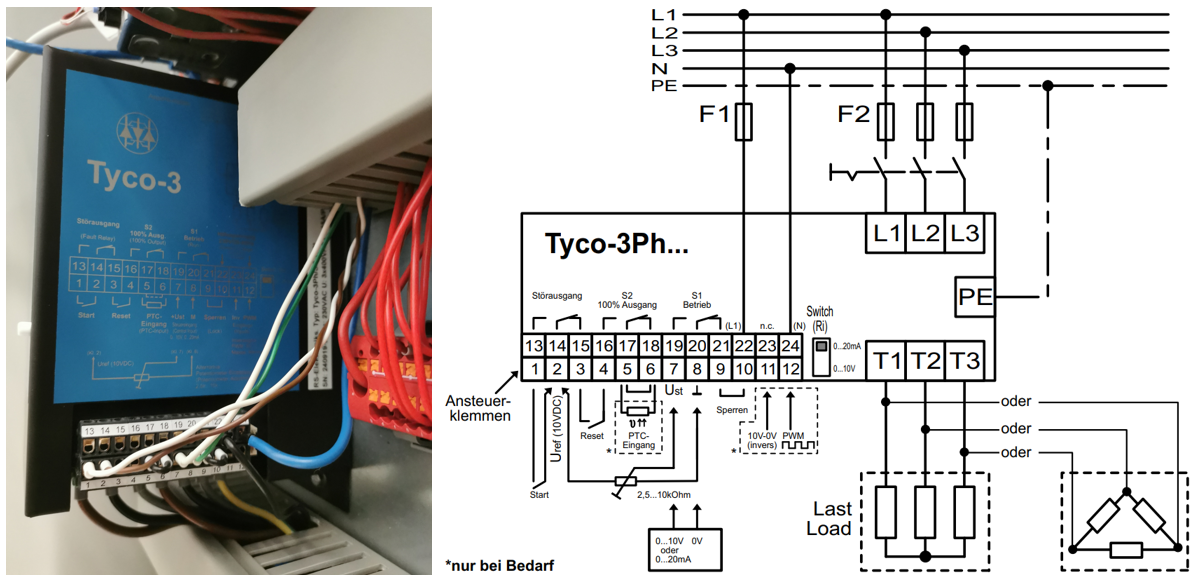

Thyristorsteller for the Electric Heater:

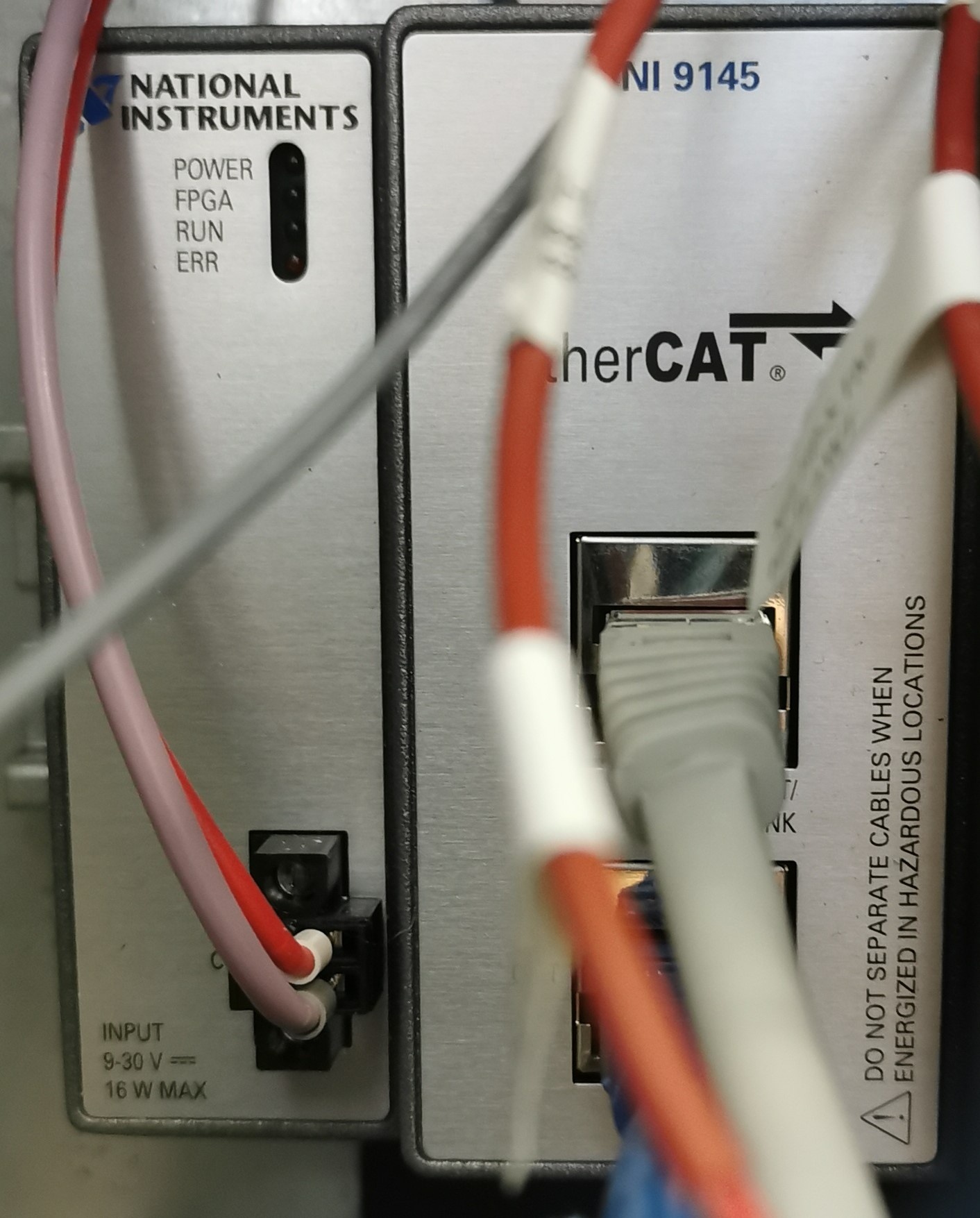

Connection to the Switch Box of SFH1:

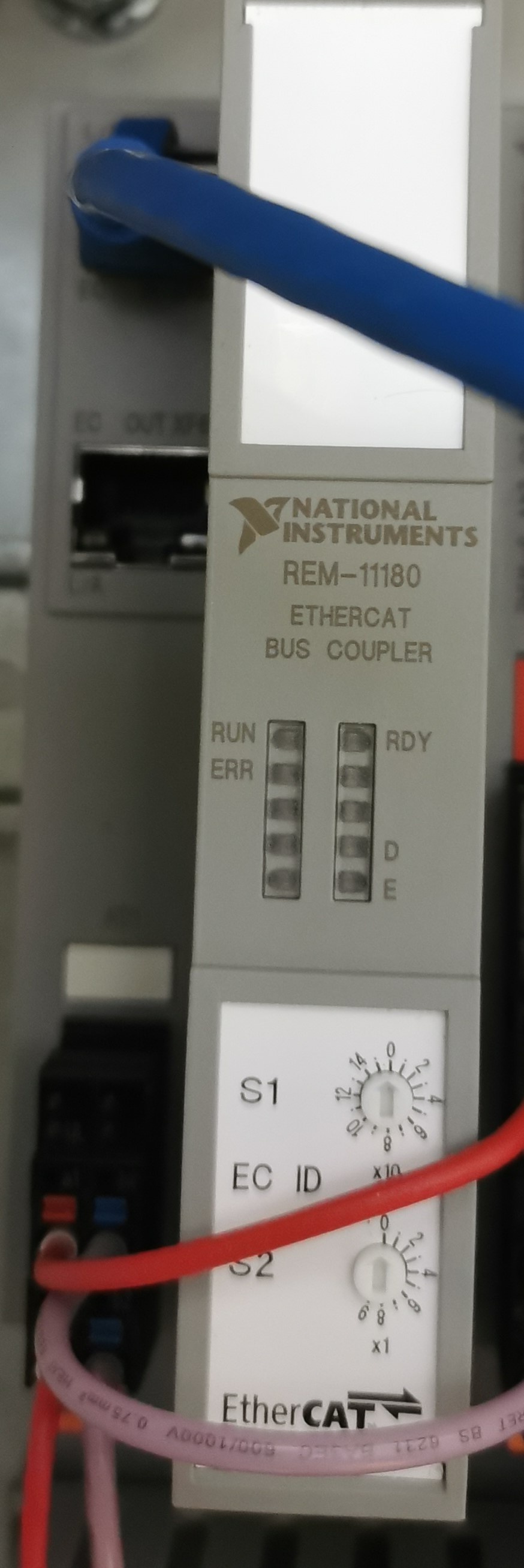

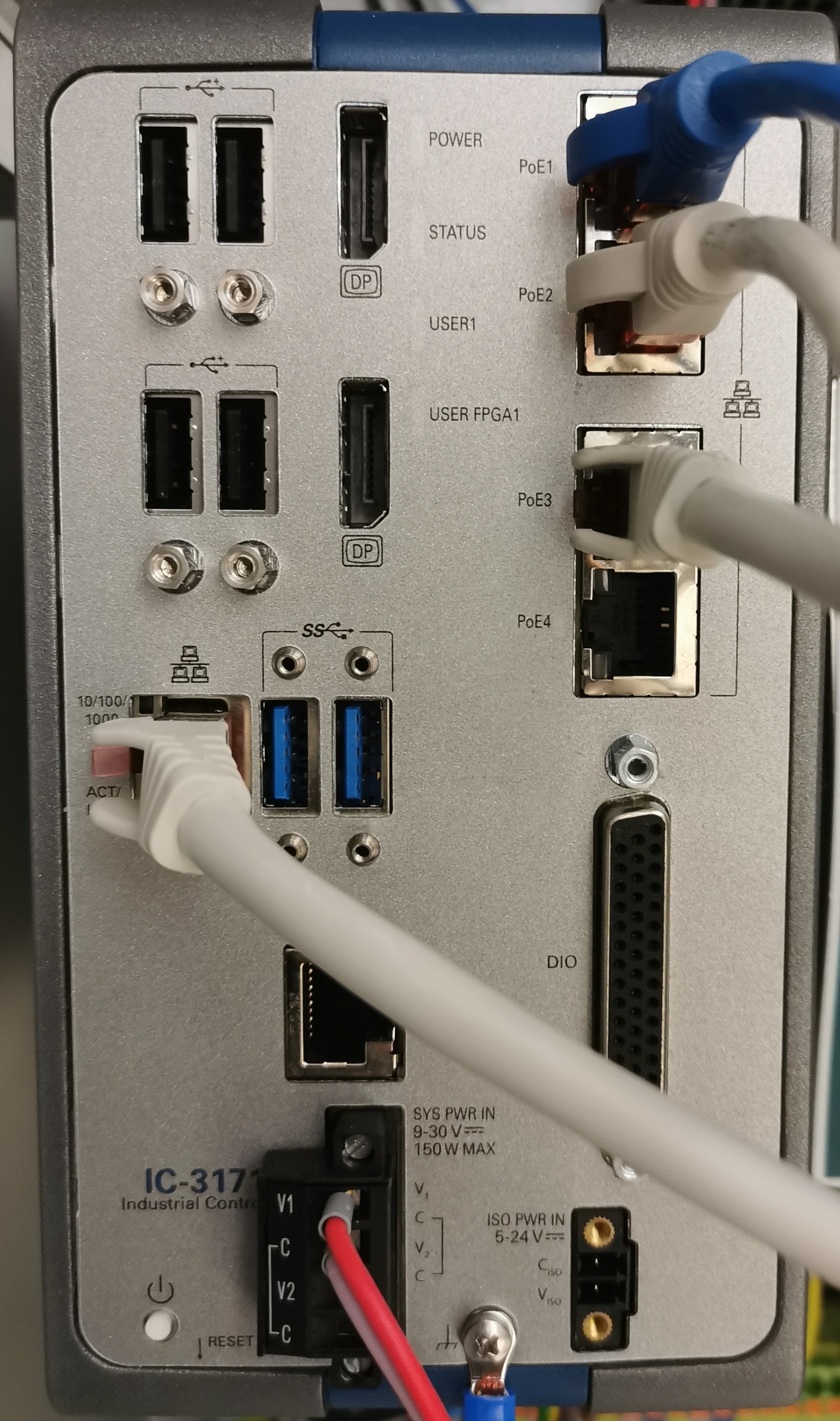

REM 11180toNI 9145toIC 3171
