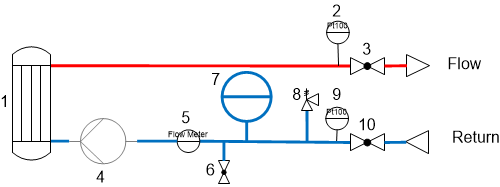

Scheme:
The first letter of the ID describes the genera type of the name:
- S stands for signal
- A stands for actuator
- C stands for component
For more information about the naming concept of the ID, the this wiki page: Naming Concept
| Nr. | ID | Name | Signals | Comment |
|---|---|---|---|---|
| 1 | A_EH-ST | Electric Heater | 0-10V | |
| 2 | S_TM-ST_VL | Temperature | PT100 | |
| 3 | C_BV-ST_RL | Ball Valve | ||
| 4 | A_PU-ST_VL | Pump | 0-10V & On/Off | |
| 5 | S_FW-ST_VL | Flow Water | 4-20mA & Counter | 20 mA = 25 l/min |
| 6 | C_BV-ST_FD | Ball Valve Fill / Draining | ||
| 7 | C_EV | Expansion Vessel | ||
| 8 | C_PR | Presser Release Valve | ||
| 9 | S_TM-ST_RL | Temperature | PT100 | |
| 10 | C_BV-ST_VL | Ball Valve |
