This blog post is for the paper "pi-GAN: Periodic Implicit Generative Adversarial Networks for 3D-Aware Image Synthesis" [1] written by "Eric R. Chan, Marco Monteiro, Petr Kellnhofer, Jiajun Wu, Gordon Wetzstein" from Stanford University.

Problem Definition and Introduction

GANs have been used to generate high-resolution, photorealistic images [9, 10, 11]. GANs are used to create new data instances that resembles the training data, generally used to create 2D-images, as an example, a picture of a non-existing human face can be synthesized by using human faces training data [9].

Figure: Images generated using the CELEBA-HQ dataset

Figure: Images generated using the CELEBA-HQ dataset [9].

Due to lack of photorealistic 3D-training data, GANs are generally limited to generate 2D-images [1]. By using this knowledge, another area of utilization by GANs can be called, which is 3D-aware image synthesis. 3D-GANs try to support synthesizing multiple-view of a single object by learning neural scene representations unsupervised from 2D images, which can be used to render view-consistent image from different camera poses [1].

Figure: Multiple-view examples synthesized by using pi-GAN

Figure: Multiple-view examples synthesized by using pi-GAN [1].

Current solutions of 3D-aware image synthesis are good at decoupling identity from structure, allowing of a single instance from multiple poses. On the other hand they lack of multi-view consistency or details [7, 16, 17, 21]. pi-GAN [1] both improves the image quality and view-consistency, compared to the previous approaches. SIREN [22] is more capable than ReLU implicit representations at representing finer details.

Animation: Comparison of three approaches

Animation: Comparison of three approaches [1]

This paper [1] introduces the improvements with combination of these techniques:

• SIREN-based implicit GANs as an alternative to convolution GAN architectures
• A mapping network with FiLM [18] (feature-wise linear modulation) conditioning
• Progressive growing from ProgressiveGAN [9]
• Neural radiance fields from NeRF [15]

Animation: Example of a radiance field

Animation: Example of a radiance field [15]

Authors [1] tell their paper achieves state-of-the art result in CelebA [12], Cats [26] and CARLA [4, 21] datasets.

Animation: Results from pi-GAN

Animation: Results from pi-GAN [1]

Related Works

This works consists of two parts basically: First one is, neural representations and rendering. Second one is Generative 3D-aware image synthesis.

Neural representations and rendering

Neural implicit 3D-representations can be used to represent parts [30, 31], objects [32, 33, 34, 35, 36, 37, 38] or scenes [39, 40, 41, 42, 22] and utilizing neural rendering [43], neural representations can be trained using multi-view 2D images [51, 40, 45, 46, 15, 36, 47, 48, 49].

In this part, the closest works to this paper are SIREN [22] and NeRF [15], these works were used to overfit individual objects or scenes. Meanwhile pi-GAN [1] tries to combine the concept neural representations with 3D GANs.

Animation: ReLU activation or SIREN (periodic sine) activation for shape modelling

Animation: ReLU activation or SIREN (periodic sine) activation for shape modelling [22]

Generative 3D-aware image synthesis

GANs [6] are generally used in image generation [19, 9,10,11], image-to-image translation [27], image editing [29], and learning from partial and noisy observations [3]. Most of them are limited to 2D images. Still, there exists some implementations even try to utilize 3D shape of the objects to generate 2D images from the shape [28, 5, 25, 16, 17, 13, 23, 24].

Most similar work to this paper is mentioned as GRAF [21], which is a generative model for implicit radiance fields. Difference between pi-GAN [1] and GRAF [21] can be listed as follows:

• pi-GAN uses SIREN [22] (periodic sine activation function) while GRAF [21] uses ReLU MLP.
• GRAF's MLP generator is conditioned on both a shape noise code and appearance noise code. While pi-GAN uses StyleGAN-inspired [25] mapping network, which conditions MLP on a single input noise vector through FiLM conditioning.
• pi-GAN uses progressive growing [24] strategy during training.
• GRAF [21] uses a patch-based discriminator, which is not used in pi-GAN [1], as SIREN [22] is prone to local overfitting to the last batch if sufficient coverage of the space is not maintained.

Methodology

pi-GAN tries to learn radiance field representations from unlabeled 2D images, with the goal of synthesizing high-quality view consistent images [1].

SIREN-Based Implicit Radiance Field

3D objects are represented in the radiance field, which is parameterized as MLP that takes 3D coordinate $//<![CDATA[ \begin{array}{l}\mathbf{x} = (x,y,z)\end{array} //]]>$ and viewing direction $//<![CDATA[ \begin{array}{l}\mathbf{d}\end{array} //]]>$ as input. Neural radiance field outputs spatially varying density $//<![CDATA[ \begin{array}{l}\sigma(\mathbf{x})\end{array} //]]>$ and view-dependent color $//<![CDATA[ \begin{array}{l}\mathbf{c}(\mathbf{x},\mathbf{d})\end{array} //]]>$. Also, StyleGAN-inspired [25] mapping network is used to condition SIREN on a noise vector $//<![CDATA[ \begin{array}{l}\mathbf{z}\end{array} //]]>$ through FiLM conditioning. The model can be seen in the figure [1].The pi-GAN generator architecture

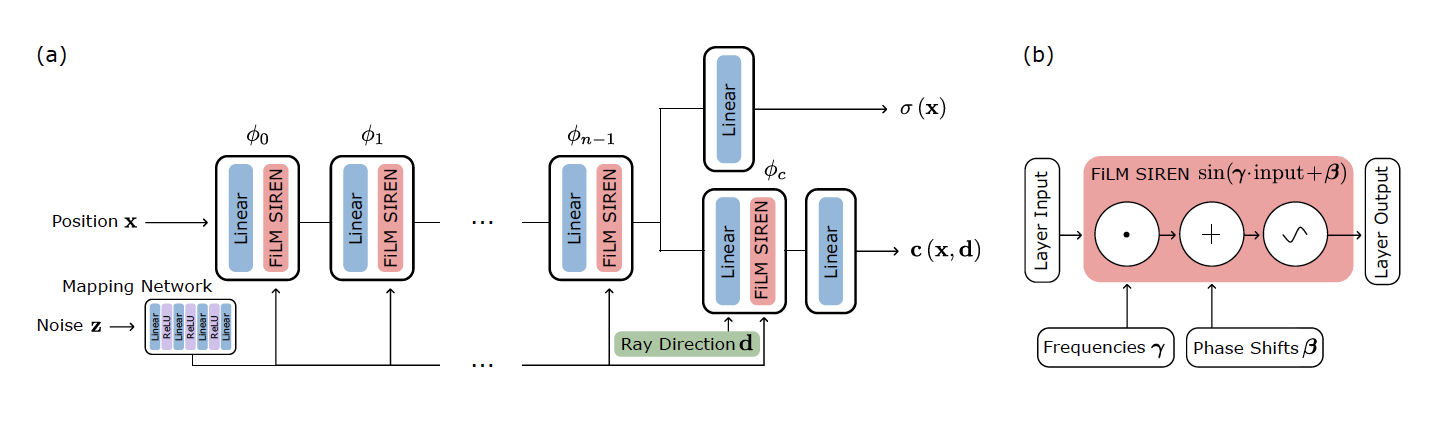

The pi-GAN generator architecture [1]

The model is represented by the function below. Simple affine transform happens, then followed by the mapping network, which is a simple ReLU MLP, takes input noise vector from FiLM [18] $//<![CDATA[ \begin{array}{l}\mathbf{z}\end{array} //]]>$ and outputs frequencies $//<![CDATA[ \begin{array}{l}\gamma_i\end{array} //]]>$ and phase shifts $//<![CDATA[ \begin{array}{l}\beta_i\end{array} //]]>$ is applied to condition each layer. Finally sine nonlinearity is applied as activation function. On the output layer, density and color are defined as:

Neural Rendering

Neural volume rendering is used to render neural radiance field from arbitrary camera poses $//<![CDATA[ \begin{array}{l}\xi\end{array} //]]>$ from a pinhole camera from the origin $//<![CDATA[ \begin{array}{l}\mathbf{o}\end{array} //]]>$, as shown in the figure [1].

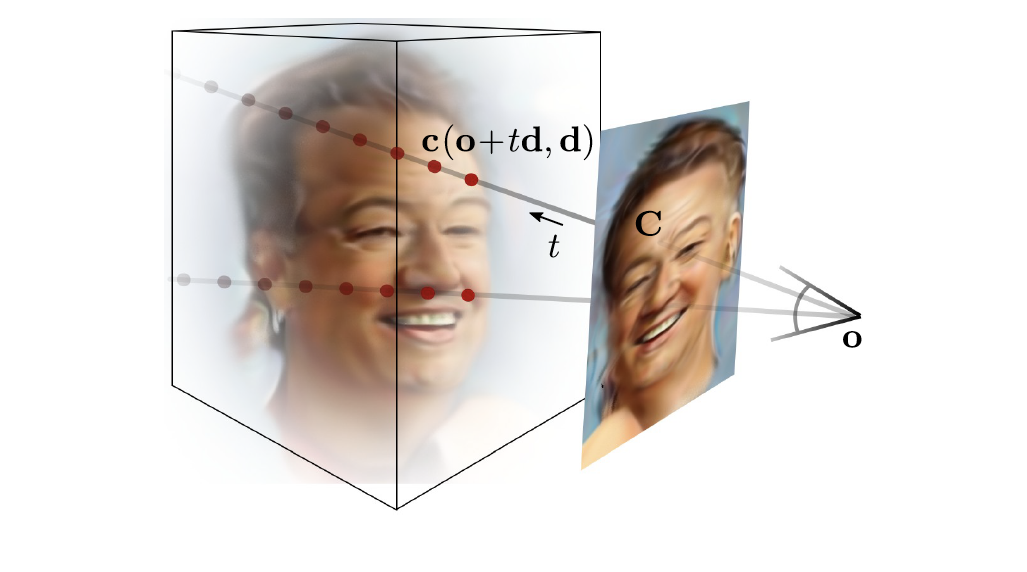

Figure: Visualization of neural volume rendering procedure

Figure: Visualization of neural volume rendering procedure [1]

At every sample, generator tries to predict density $//<![CDATA[ \begin{array}{l}\sigma\end{array} //]]>$ and color $//<![CDATA[ \begin{array}{l}\mathbf{c}\end{array} //]]>$. Then the pixel color $//<![CDATA[ \begin{array}{l}\mathbf{C}\end{array} //]]>$ for a camera ray $//<![CDATA[ \begin{array}{l}\mathbf{r}(t) = \mathbf{o}+t\mathbf{d}\end{array} //]]>$ is calculated using with the volume render equation [14] from near bound to far bound. pi-GAN [1] implements a discretized form, which was introduced by NeRF [15], also used by GRAF [21]:

Discriminator

Similar to ProgressiveGAN [9], pi-GAN [1] uses a convolutional discriminator with parameters growing progressively. Training starts with a high amount of low-resolution graphics in a batch to produce coarse shapes, then while training progresses, newer layers are introduced to the discriminator to process high-resolution graphics to discriminate finer details.

Training Details

For the details of training, $//<![CDATA[ \begin{array}{l}\xi\end{array} //]]>$ camera poses with the distribution $//<![CDATA[ \begin{array}{l}p_\xi\end{array} //]]>$ are sampled. Pose distributions for CelebA and Cats is Gaussian, for CARLA is uniform. Camera positions are constrained to the surface of unit sphere and directed camera to point towards the origin, then pitch and yaw rotations along the sphere with a distribution $//<![CDATA[ \begin{array}{l}p_I\end{array} //]]>$ from the real images $//<![CDATA[ \begin{array}{l}I\end{array} //]]>$ were sampled from training dataset. Non-saturating GAN loss, with R1 regularization is used, which generator tries to minimize and discriminator tries to maximize:

For the training, Adam optimizer is used with $//<![CDATA[ \begin{array}{l}\beta_1=0, \beta_2=0.9\end{array} //]]>$ and learning rates were $//<![CDATA[ \begin{array}{l}5\times10^{-5}\end{array} //]]>$ with $//<![CDATA[ \begin{array}{l}1\times10^{-5}\end{array} //]]>$ decay for the generator and $//<![CDATA[ \begin{array}{l}4\times10^{-4}\end{array} //]]>$ with $//<![CDATA[ \begin{array}{l}1\times10^{-4}\end{array} //]]>$ for the discriminator.

Experiments & Results

Evaluating Image Quality

pi-GAN is compared against two previous approaches for 3D-aware image synthesis: HoloGAN[16] and GRAF [21] on three datasets, which are CelebA, Cats and CARLA [12, 26, 4, 21].

Animation: Comparison of three approaches

Animation: Comparison of three approaches [1]

According to the authors [1], HoloGAN achieves good image quality with sharper details, but it lacks of multi-view consistency, identity of the object changes with the rotations; especially on the CARLA dataset. GRAF was more capable to recover wide viewing angles with utilizing the 3D representation, but falls short on rendering finer details, such as hair and teeth, therefore the images generated are similar to cartoons. As a result, pi-GAN renders finer images in wide-viewing angles, does better than both approaches. All of these approaches have benchmarked in terms of Frechet Inception Distance (FID) [8], Kernel Inception Distance (KID) [2], and Inception Score [20] for all three datasets [12, 26, 4, 21]. pi-GAN showed better benchmarking results than HoloGAN [16] and GRAF [21].

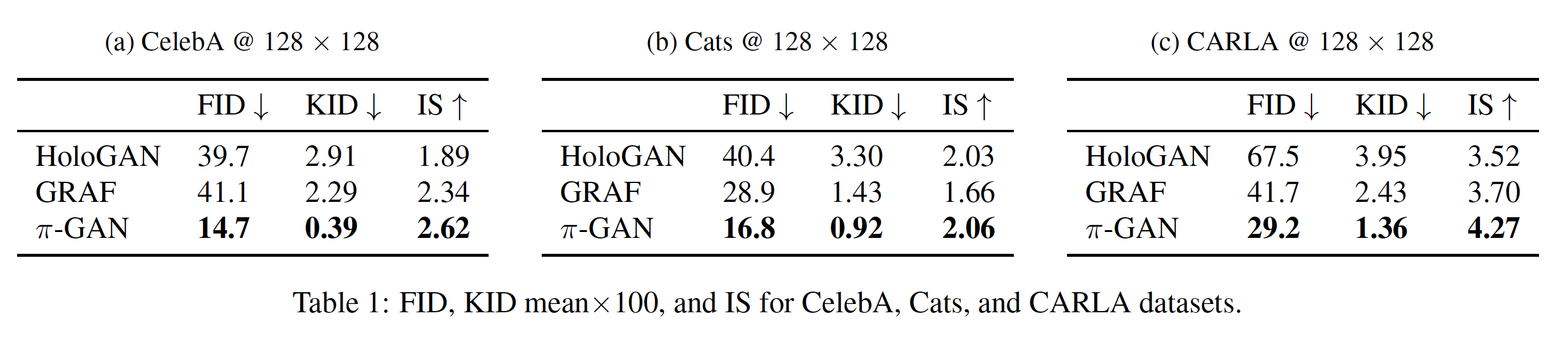

Table: Quantitative results for three datasets and three approaches

Table: Quantitative results for three datasets and three approaches [1]

Generating Approximate 3D Representations

Using 3D-Aware representation grants of the advantage of rendering and interpreting poses which were unseen or uncommon at training time, generalizes for wider angles, can create results, even the outliers have visual artifacts. This result is caused by the imbalance of the dataset which focuses on front-facing images, using uniformly distributed datasets, such as CARLA, did not suffer from these artifacts.

Figure: Generating wider-angle representations

Figure: Generating wider-angle representations [1]

Also, by using radiance fields, even with the training of the cropped images, results can be zoomed out by the extrapolation of the radiance fields.

Figure: Zooming out with the extrapolation of the radiance fields

Figure: Zooming out with the extrapolation of the radiance fields [1]

Semantical meaningfulness of the latent space learned by pi-GAN is demonstrated as shown.

Figure: Latent space interpolation

Figure: Latent space interpolation [1]

3D structure, generated by pi-GAN can be extracted as either marching cubes such shown in CARLA or a projected depth-map shown in Cats and CelebA.

Figure: Extracted 3D structures

Figure: Extracted 3D structures [1]

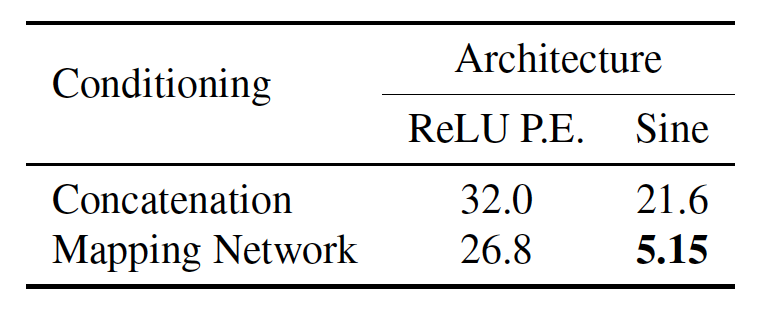

Benchmark of the radiance field's conditioning is shown as in the Table, best FID score achieved via Sine activation and FiLM conditioning against radiance fields conditioned by concatenation and ReLU activational positional encoding.

Table: FID scores on CelebA @ 64 x 64 when comparing different activation functions and conditioning methods [1]

Larger batch sizes with lower resolution images via utilizing progressive growing helped to achieve better FID results.

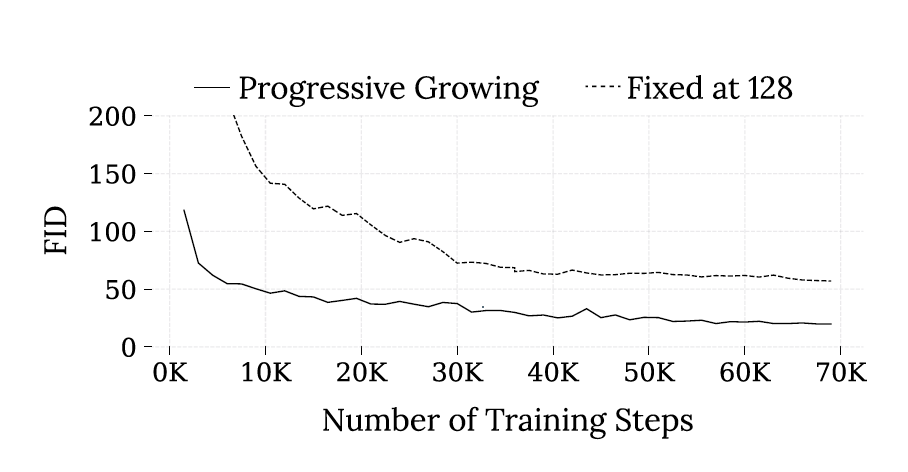

Figure: FID scores benchmarked on progressive Growing strategy and fixed size images

Figure: FID scores benchmarked on progressive Growing strategy and fixed size images [1]

Discussion, Future Work & Conclusion

With using pi-GAN, it is possible that using an input image and pretrained generator, perform single-view reconstruction, such shown in the figure.

Figure: Single-view 3D reconstruction from an input image and pretrained generator

Figure: Single-view 3D reconstruction from an input image and pretrained generator [1]

In addition, while the unsupervised learning of 3D shapes was not the focus of the pi-GAN, it still can produce interpretable view-consistent of 3D representations. One future work might be focusing on refining the quality of extracted meshes.

In some cases pi-GAN generated radiance fields, which produced viable images but failed on 3D shape extractions, such represented the shape of the face concave. Also, while pi-GAN increased the image quality for 3D-aware GANs, there's much work remains to match with the state-of-the-art convolutional 2D GANs in terms of image quality. In addition to that, pi-GAN is computationally expensive when compared to 2D GANs, due to the generator not only scales with the image size, but the depth along each ray. Future works can reveal insights of such cases and improve the results and increase the image quality also decrease the computational complexity of pi-GAN.

Figure: pi-GAN generates concave 3D representation for a face as a failure

Figure: pi-GAN generates concave 3D representation for a face as a failure [1]

In ethical side, pi-GAN can be used to extend DeepFakes, which is used to generate fake photos and videos of real people and poses a societal threat. Also for the CelebA dataset lacks of diversity, that might affect the results of faces in the paper.

To conclude, pi-GAN improved the results in the area of photorealistic 3D-aware image synthesis.

Review

I found the paper interesting, easily readable and enjoyable. I liked especially these points:

• Code is available for the public to take a look.
• Experiments are done in a comparable way with the previous approaches
• More than one improvement, such as FiLM, SIREN, progressive growing, radiance fields are introduced and combined

As the weaknesses and suggestions for improvements to this paper:

• I had to have some clarifications such as that I needed to research what is a radiance field and read about NeRF. I needed to check what FiLM, SIREN is, why it is better than ReLU, have some questions such that why we don't utilize periodic sine as a standard deep learning model, instead of ReLU etc.
• I saw a recently released paper named "ADOP: Approximate Differentiable One-Pixel Point Rendering" [49] and I think some of the ideas can be adopted from that paper to the neural representation/rendering part of pi-GAN as a future work.Figure: ADOP [49] used for neural rendering
• Also another recent released paper (December 9, 2021) “Plenoxels: Radiance Fields without Neural Networks” [50] can be an alternative to radiance fields part.

Figure: Plenoxels [50] used as an alternative for NeRF [15]
